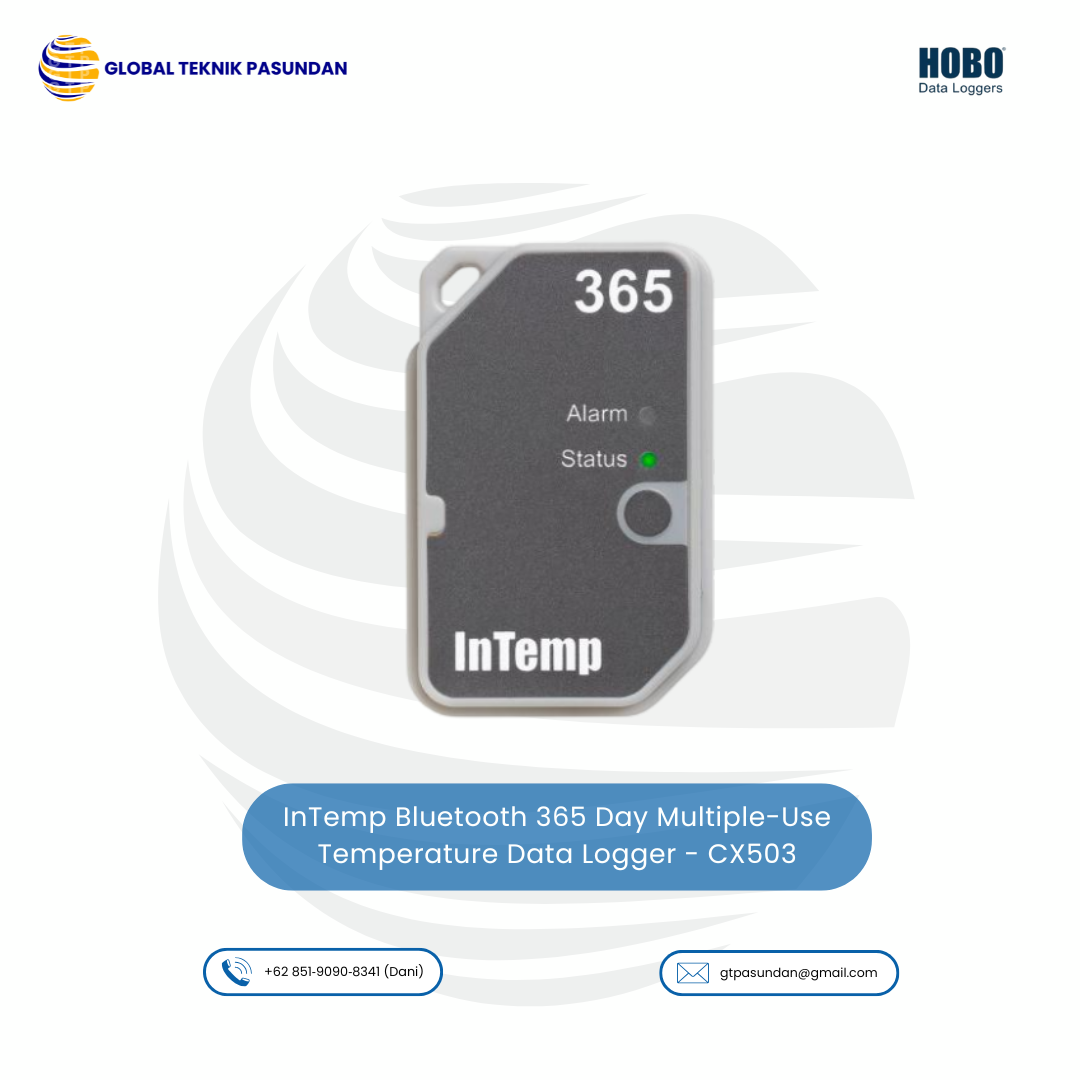

InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503
InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503 - Image 2
InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503 - Image 3
InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503 - Image 4
InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503 - Image 5

InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503

Jika anda berminat untuk membeli alat InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503 yang disediakan oleh Global Teknik Pasundan, silahkan anda langsung hubungi kami melalui :

PT. Global Teknik Pasundan

Alamat: Jl. Pd. Kelapa Raya No.3B, RT.10/RW.1, Pd. Klp., Kec. Duren Sawit, Kota Jakarta Timur, Daerah Khusus Ibukota Jakarta 13450
Whatsapp : +62 851‑9090‑8341 (Dani)
Email : gtpasundan@gmail.com
Telp : +62 851‑9090‑8341 (Dani)

Categories: , , , , , , , , , , ,

Description

InTemp Bluetooth 365 Day Multiple-Use Temperature Data Logger CX503 adalah pencatat multiguna yang merekam data suhu hingga satu tahun. Dirancang untuk pengiriman Rantai Dingin, CRT, dan Beku, CX503 sangat ideal untuk aplikasi pemantauan loop tertutup, serta pengujian kualifikasi dan validasi peralatan.

Dengan menggunakan aplikasi InTemp di perangkat seluler, Anda dapat dengan mudah mengonfigurasi CX503 dengan salah satu dari beberapa konfigurasi yang telah ditetapkan, atau mengatur konfigurasi khusus. Pencatat memiliki alarm bawaan untuk mengingatkan Anda tentang perjalanan. Laporan logger dapat dengan cepat diunduh ke ponsel atau tablet Anda dan diunggah ke akun InTempConnect®, di mana Anda dapat menganalisis dan mengekspor data sesuai kebutuhan.

Dengan CX Gateway opsional, Anda dapat memperoleh pemberitahuan jarak jauh tentang kunjungan suhu dan secara otomatis mengunduh data dari pencatat dalam jangkauan perangkat. Pelajari lebih lanjut tentang InTemp CX Gateway

Sertifikat Kalibrasi 3 Titik, yang berlaku selama satu tahun sejak tanggal pembelian, memberikan jaminan bahwa data dapat dipercaya saat membuat keputusan disposisi produk yang penting.

Features

  • Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
  • Enables fast, remote data transfer; ideal for clinical logistics
  • Eliminates need to open sealed containers to retrieve data
  • Real-time alerts and automatic data downloads with optional InTemp CX Gateway device
  • Shortens logger-handling times; no PC or cables required
  • Ensures secure data via encrypted technology
  • Meets GDP requirements for NIST traceable calibration

Specification

Temperature Sensor

Range
-30° to 70°C
-22° to 158°F
Accuracy
±1.0°C from -30° to -5°C
±1.8°F from -22° to 23°F
±0.5°C from -5° to 50°C
±0.9°F from 23° to 122°F
±1.0°C from 50° to 70°C
±1.8°F from 122° to 158°F
Resolution
0.04°C
0.072°F

Logger

Logger Operating Range
-30° to 70°C
-22° to 158°F
NIST Calibration
Three-point NIST calibration, probe only @ -10C, 25C, and 55C
Radio Power
1 mW
0 dBm
Transmission Range
Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard
Bluetooth Low Energy (Bluetooth Smart)
Type
Multiple Use
Duration
Up to 1 year
Shelf Life
Up to 1 year
Logging Rate
1 second to 18 hours
Battery
CR2450 3V lithium, not replaceable. Battery life is 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging may impact battery life.
Memory
14,000 measurements
Full Memory Download Time
Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions
6.9 x 4.5 x 1.1 cm
2.71 x 1.76 x 0.42 inches
Weight
25.5 g
0.90 oz
Environmental Rating
IP67

Notices

Passed RTCA DO160G, part 21H
