ADT-01 Primary Adhesive Tester
Jika anda tertarik untuk membeli alat ADT-01 Primary Adhesive Testerbb yang disediakan oleh Global Teknik Pasundan, silahkan anda langsung hubungi kami melalui :
PT Global Teknik Pasundan
- Alamat: Jl. Pd. Kelapa Raya No.3B, RT.10/RW.1, Pd. Klp., Kec. Duren Sawit, Kota Jakarta Timur, Daerah Khusus Ibukota Jakarta 13450
- Whatsapp / Email : Hubungi Kami
- Telepon atau WA : + 62 895-2811-6846 (Admin)
Description

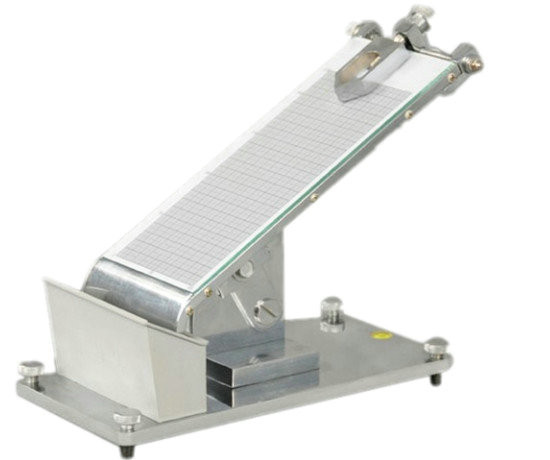

ADT-01 Primary Adhesive Tester is applicable in primary adhesive tests of pressure sensitive adhesive tapes, adhesive bandage (plaster), label, protective films and other products.
> CHARACTERISTICS
* Rolling ball method;
* Adjustable angle.
> PRINCIPLE
This tester employs rolling
ball method, and tests the primary
Adhesive properties by testing the bond of measurable strength
formed immediately after
Adhesive specimen and steel ball are brought into
contact under low pressure.
> TECHNICAL INDEXES
Adjustable Angle: 0º ~60º
Panel Width:120mm
Test Area Width:80mm
Standard Steel Balls: 1/32~1inch
Net Weight:6kg
> STANDARDS
ASTM D3231, JIS Z0237
Please Note:
Pictures used are for illustration purposes only and may differ from the actual product received.
We are always dedicated to the innovation and improvement of product performance and function.
Therefore, technical specifications are subject to change without further notice.
Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.
