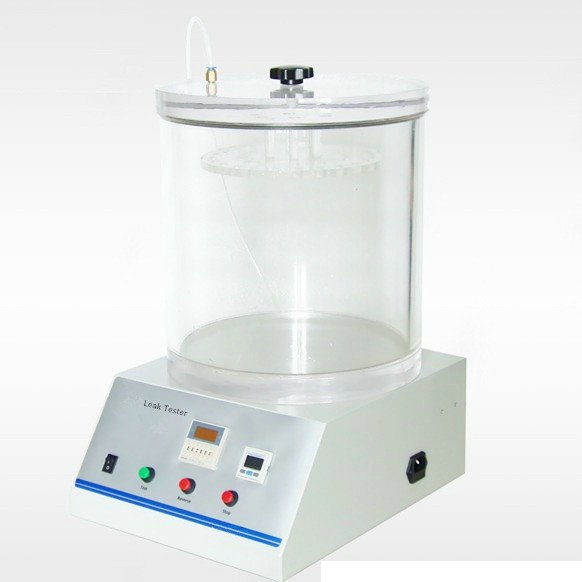

LT-01 Leak Tester

LT-01 Leak Tester is applicable in leak testing of pouches, bottles, pipes, cans and boxes of foodstuff, pharmaceutical, medical,

daily chemistry, automotive, electronic components, stationary and other industries.

It’s also applicable in the leak testing of the specimens after falling tests and pressure resistance tests.

 >  CHARACTERISTICS

      * No electricity or batteries required

      * Stable property of test system

      * Extra-thick perspex

      * Different chamber sizes available

      * No vacuum pump required

      * Easy operation and maintenance leak detection system

 >  PRINCIPLE

      Inner-out pressure difference of the specimen immerged in the water, which formed by vacuumizing the test chamber.

     Observe the specimen leakage properties, expanding and resuming to its original shape after releasing the vacuum.

     All those determine the sealing properties.

 >  TECHNICAL INDEXES

      Vacuum Degree: 0~ -90kPa

      Size of Vacuum Chamber: ф270mm x 210mm(H) (Standard)

                                                  Ф360mm x 585mm(H) (Optional)

                                                  Ф460mm x 330mm(H) (Optional)

                                                   Note: other sizes can made to order

      Gas Source: Air compressor

      Gas Source Pressure: ≤0.7MPa (Users provide gas source themselves)

      Gas Inlet: Φ6mm polyurethane pipe

      Power: AC 220V 50Hz

      Dimension Size: L300 x W380 x H500 mm

      Net weight: 12kg

 >  STANDARDS

      ASTM D3078

Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.
