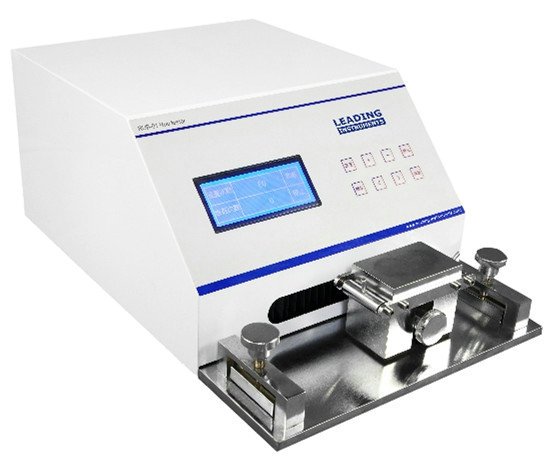

RUB-02 Rub Tester



RUB-02Rub Tester isapplicable in abrasion resistance test of printed materials, PS boards and

coating layers of other products. It can effectively analyze the abrasion
resistance, ink layer

fastness and the coating rigidness of other products.



 >  CHARACTERISTICS

      * Minico-mputer control, LCD display;

      * Manu interface, PVC operation menu;

      * Applicable in dry or wet rubbing or scuffing, wet bleed,
transfer, wet smear and functional tests.

      * Arc moving model;

      * Double testing station;

      * Four testing speed;

      * Memory when power failure;

      * Buzzer alarm.



 >  TECHNICAL INDEXES

      Rubbing Pressure: 8.9N (2lb), 17.8N (4lb)

      Rubbing Speed: 21, 42, 85,106cpm

      Rubbing Motion: to-and-fro arc motion

      Rubbing Times: 0~999,999

      No. of Specimens: 1~2 pieces

      Power: AC 220V  50Hz

      Net weight:40 kg



 >  STANDARDS

      ASTM D5264, TAPPI T830



 >  CONFIGURATION

      Standard:Mainframe, test block 8.9N (2lb), test block 17.8N (4lb), rubbing pad

      Optional:Non-standard test block

Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.
