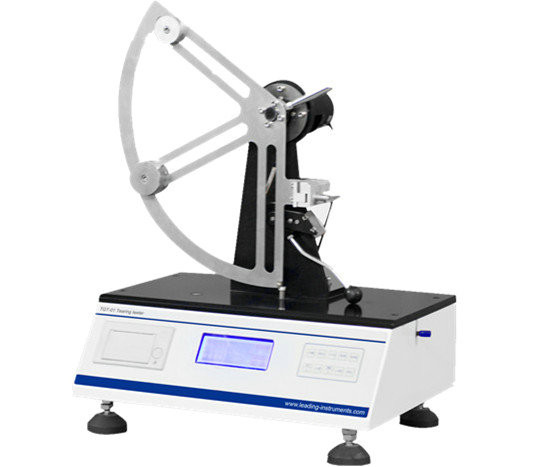

TGT-01 Tearing Tester

TGT-01 Tearing Tester is applicable in the
tearing test of films, sheets, flexible PVC, PVDC, waterproof

films, woven
materials, polypropylene, polyester, paper, cardboard, textile and non-woven,
etc.

 >  CHARACTERISTICS

      * Automatic and electronic measurement;

      * Pneumatic specimen clamping and pendulum releasing;

      * Rapid force range selection;

      * Multiple capacities of pendulum;

      * Multi-testing units;

      * RS232 interface;



 >  PRINCIPLE

      Lift the pendulum up to certain height, enable it
to have a certain potential energy, pendulum tears

      the specimen while swinging
down, computer calculates the decreasing energy caused by tearing so

      as to
obtain the needed force for tearing.



 >  TECHNICAL INDEXES

      Pendulum Capacities: 200gf, (400gf, 800gf, 1600gf, 3200gf, 6400gf)

      Gas Source Pressure: 0.6MPa (users provide gas source themselves)

      Gas Inlet: Ф4mmpolyurethane pipe

      Dimensions:480mm(L) x380 mm(B) x560mm(H)

      Power: AC 220V 50Hz

      Net weight: 23.5kg



 >  STANDARDS

      ASTM D1922, ASTM D1424, ASTM D689, TAPPI
T414, ISO 6383, ISO 1974



 >  CONFIGURATION

      Standard:Mainframe, one basic
pendulum, one augmenting weight, one check weight, communication cable,
software

      Optional:

      Basic pendulum: 200gf, 1600gf

      Augmenting weight: 400gf ,
800gf ,3200gf ,6400gf

      Check weight: 200gf, 400gf,
800gf, 1600gf, 3200gf, 6400gf, and sampling knife.
