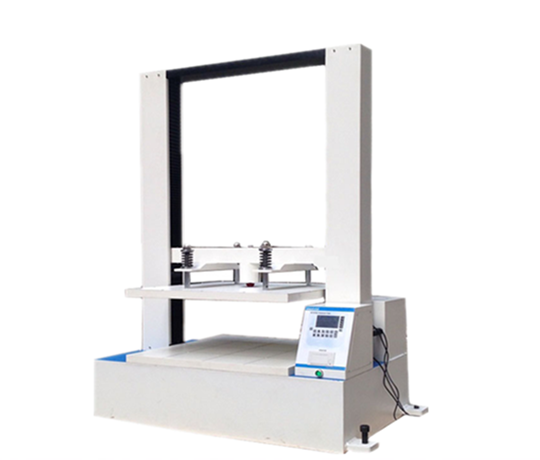

BCT-02 Box Compression Tester

BCT-02 Box Compression Tester is professionally used to test the compression resistance property of carton box, corrugated box, honeycomb cardboard box and other packaging. And it’s also applicable to container compression test of  plastic bucket (edible oil, mineral water), fiber drum, carton, paper, cans, container barrels (IBC barrels).



 >  CHARACTERISTICS

      * Minicomputer
control; high-speed ARM processor to ensure high automaticity, fast data
collection,

        test automatically and intelligent judgment;

      * Three
test methods：compression test; stacking test; press standard test;

      * Screen
dynamic displays sample No., sample deformation, real-time pressure and initial
pressure;

      * Serve
motor controls with high precise, low noise and high speed advantages; Accurate
position and

        fast response speed save test time;

      * 24
high-precision AD converter (resolution up to 1 / 10,000,000) and high
precision weighing sensor

        to ensure the speed and accuracy of the data
acquisition of the instrument force;

      * Ultimate
travel protection, overload protection, bugs prompt and fault prompts
intelligent configuration

        to ensure safe operation; Micro-printer can print
test data easily.

      * Connecting with computer can display curve,
analyze test data, save and print data.



 >  TECHNICAL INDEXES

      Test Range：20 KN,  50 KN(Optional)

      Accuracy：1% of Reading Value

      Force
Resolution：1 N

      Deformation
Resolution：0.1 mm

      Pressing Plate：Parallelism between upper and lower pressing plate: ≤1mm

      Test Speed：1-300 mm/min(Continuously Variable Trans-mission)

      Return speed：1-300 mm/min(CVT)

      Stroke：1000mm

      Specimen
Dimension：800mmx800mmx1000mm

      Power Supply：AC 220V 50 Hz



 >  STANDARDS

      ISO
2872, ISO 2874



 >  CONFIGURATION

      Mainframe,
Control cabinet, Power line, Connecting line, 4 rolls of printer paper

      Optional:
computer control system
